Basic Knowledge of RV Water and Power Pedestals

2025-05-12 11:40:05 1028 Geeya

Introduction and Overview

RV Pedestal6

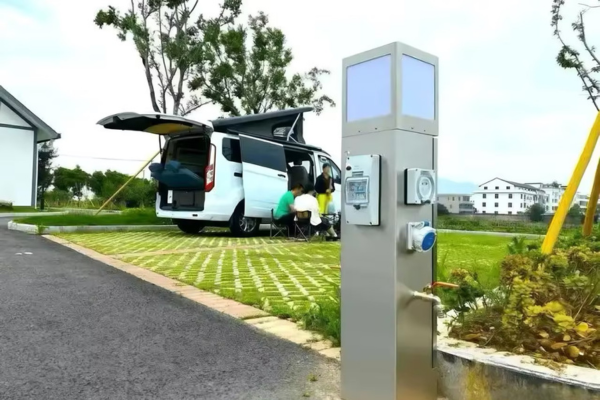

P1: RV Pedestal

Definition and Function:
An RV water and power pedestal is a facility designed to provide electricity and clean water to RVs. These pedestals are typically installed in RV campgrounds, parking lots, or designated RV parking areas to ensure a stable power supply and clean water source for daily use and appliance operation.

Importance of Power Management at RV Campsites:
Effective power management is crucial for safe operations, proper facility use, and enhancing visitor experience at RV parks.

Development Background and Market Trends:

Industry trends9

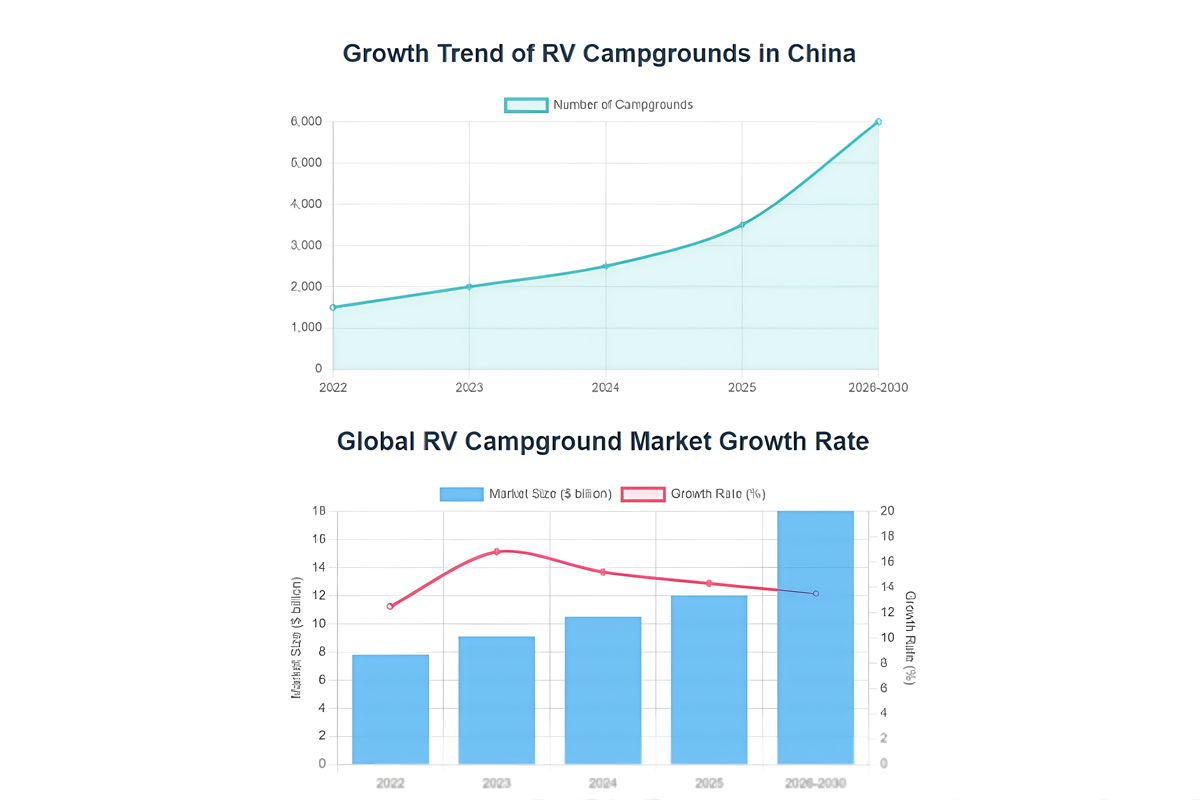

P2: Industry trends

As economic development and consumer upgrading continue, more people pursue personalized and flexible travel. National policy support and the growing RV industry are driving increased demand for RV campsites. After years of development, campsites have expanded in scale while advancing in quality, specialization, smart technology, information integration, regional expansion, and industry convergence.

Structure of RV Water and Power Pedestals

An RV pedestal generally consists of the following components:
- Pedestal Body: Designed for outdoor use with waterproof, anti-fall, anti-theft, and corrosion-resistant properties.
- Power Supply Module: The distribution box is its core, containing breakers, contactors, and relays. Meters measure electricity usage; power sockets come in various standards (120V/240V, 16A/32A/50A) to meet different RV needs.
- Water Supply Module: Includes a water meter, hose connector, and valve.
- Control and Protection Module: Contains leakage protection, overload protection, and control switches, which are essential for safe operation.

Main Functions and Technical Specifications

Management system8

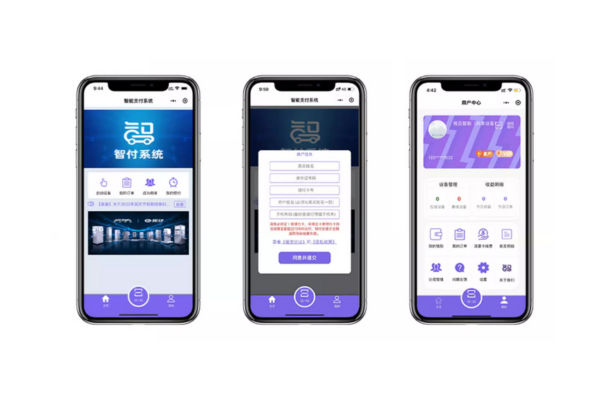

P3: Management system

1. Power Supply Function:
   Provides stable electricity with multiple billing modes (time-based, usage-based, or fixed packages). Power meters allow precise tracking for both camp management and users.

2. Water Supply Function:
   Delivers clean water via the park’s water system with adjustable pressure to ensure stable flow. Meters measure water usage for accurate billing and resource management.

3. Safety Protection Function:
   Leakage, overload, and short circuit protections prevent electric shock accidents, protect users and equipment, and prevent electrical incidents.

4. Data Monitoring and Management:
   Advanced pedestals support remote monitoring of electricity, water usage, voltage, and current via camp systems or mobile apps. Alerts are triggered upon malfunctions, and integration with booking and billing systems supports centralized user management.

Installation, Configuration, and Commissioning

Debugging and installation5

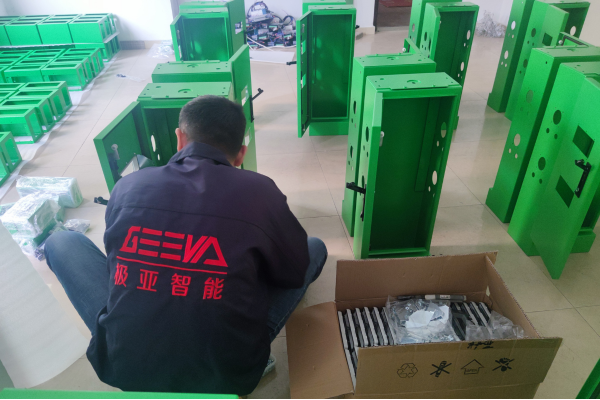

P4: Debugging and installation

- Site Requirements and Adaptability:
  Install location should allow easy RV access, typically spaced 8–12 meters apart. Concrete foundations are used with pre-laid conduits. The pedestal is secured and wired properly for safety and sealing. Material choice depends on local environment.

- Configuration:
  - Electrical: Includes 220V and 380V interfaces with independent leakage protection and circuit breakers. Total capacity should meet park demand.
  - Water: Provides standard and quick-connect faucets for various filling needs.

- Commissioning:
  After installation, test voltage, function of electrical components, and inspect water pipes for leaks. Adjust water pressure as needed.

> Note: Installation and setup must be performed by professionals following standards to ensure safety.

Maintenance and Troubleshooting

- Routine Maintenance:
  - Daily checks for physical damage, surface cleanliness, and integrity of sockets and connectors.
  - Periodic inspections of circuits and water lines by specialists.
  - Software updates should follow app guidelines to ensure accurate data and smooth operation.

- Common Issues and Solutions:
  - Unstable Voltage: Check for faults in supply, aged wiring, or overload. Adjust park load accordingly.
  - No Power at Outlet: May be due to tripped breakers, damaged sockets, or wiring issues. Requires professional inspection.
  - No Water Flow: Could be caused by blocked pipes, closed valves, or damaged faucets.
  - Unstable Water Pressure: May result from faults in the supply system or pump issues.
  - Communication Failures: Caused by weak signals, protocol mismatches, or hardware faults. Reset or replace modules if needed.
  - Metering Errors: May be due to faulty meters or sensors. Troubleshoot accordingly.

Product selection and Market Applications

RV Campground0

P5: RV Campground

Pedestal prices vary by material and features. Operators should choose based on overall site planning and specific needs, including custom designs.

From coastal Hainan to vast Xinjiang, RV water and power pedestals are now widely deployed across China, supporting RV travelers and campsite managers alike.

Future Trends and Technological Innovations

- Integration of smart technology and IoT
- Adoption of renewable and green energy sources
- Development of standardized and modular design

Conclusion and Outlook

Water and power pedestals are vital in improving camping experiences and energy management. Equipped with safety features, they help prevent accidents and provide stable power and water, allowing users to enjoy modern comforts even outdoors.

Reliable electricity supports more entertainment options like projectors and audio systems, enhancing fun and attraction.

Digital metering aids precise energy tracking for fair billing and resource optimization.

Due to their compact, safe, and user-friendly design, water and power pedestals have become increasingly favored by campsite operators. Geeya Intelligent, with years of industry experience and product excellence, welcomes inquiries from those in need of water and power solutions!
