Commercial Power Pedestal - 2 Outlets (NEMA L5-30R & L14-30R), GRES701410S-2

GRES701410S-2 Commercial Power Pedestal - 2 Outlets (NEMA L5-30R & L14-30R),IP66 Waterproof, External Leakage Protector Required

Available Models :: GRES701410S-2

Available Configurations:: 304 Stainless Steel,Socket*2

Protection Level :: Safety Cover,Childproof,Corrosion-resistant

Contact Us:

Product Details
Product PDF
Product Video

161607519

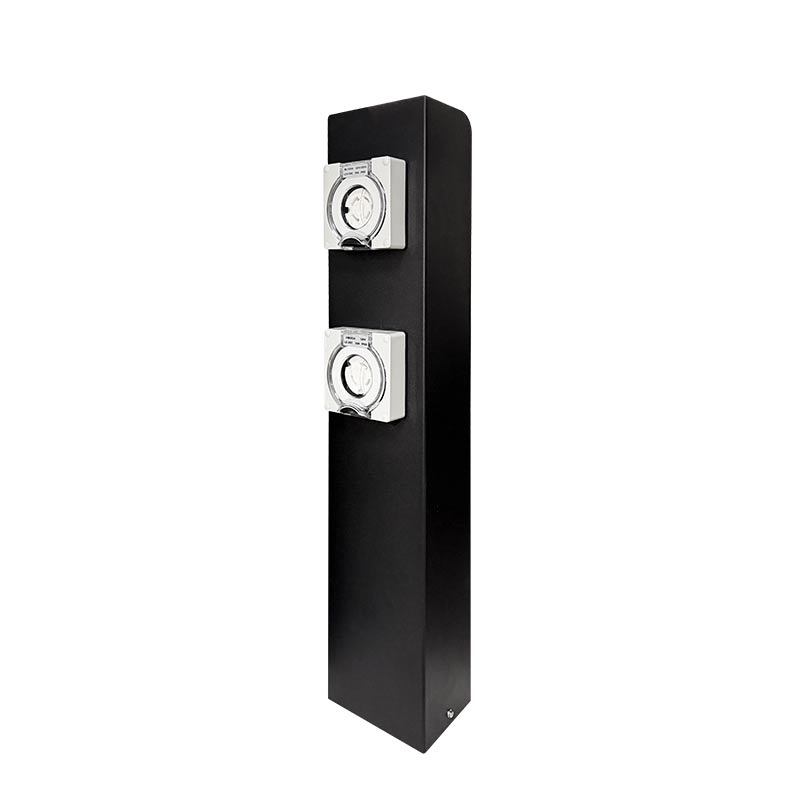

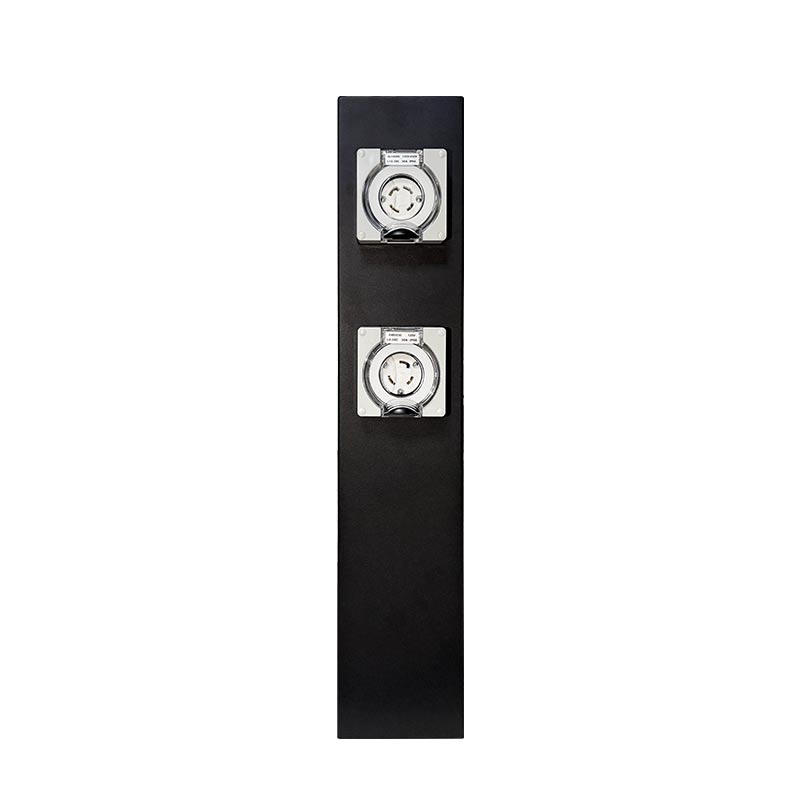

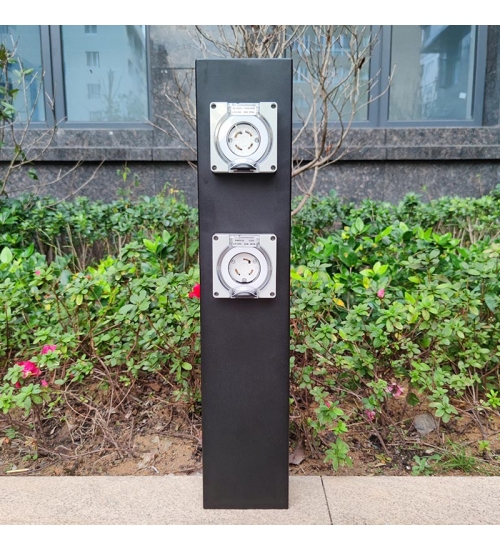

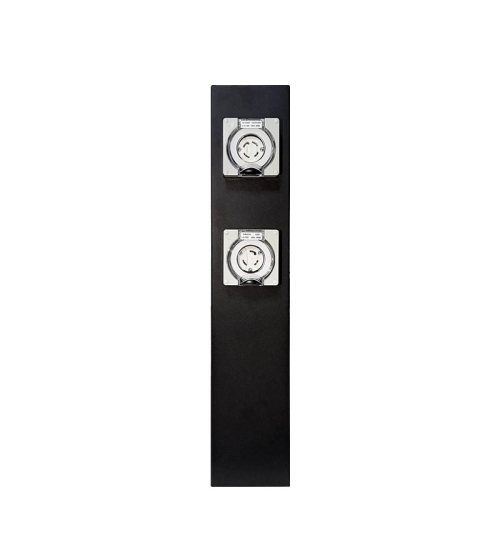

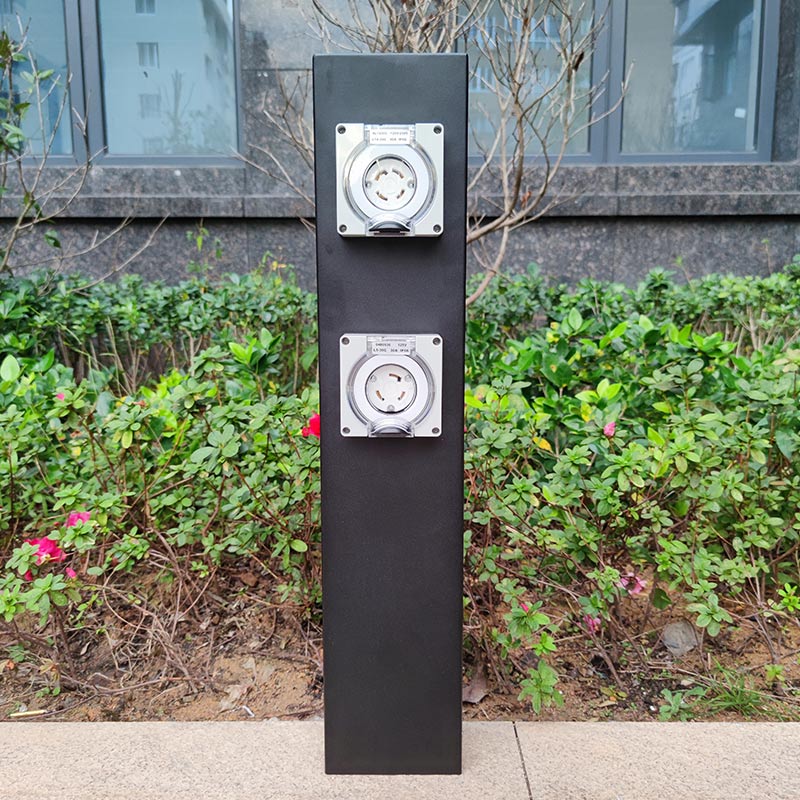

Product Name: GRES701410S-2 Commercial Power Pedestal

1. Versatile 2-Outlet Design
The GRES701410S-2 is designed with 2 outlets, offering a versatile solution for commercial and public spaces. It features one NEMA L5-30R 125V 30A 2P+G outlet and one NEMA L14-30R 125V/250V 30A 3P+G outlet, providing reliable power for a variety of applications.

2. Flexible Power Solution (Leakage Protector Not Included)
This model does not include a built-in leakage protector. The space that would typically house the leakage protector has been used to add an additional outlet. As a result, users will need to install an external leakage protector to ensure safety against overloads and electrical faults.

3. High Protection Rating and Durability
The GRES701410S-2 is built to withstand tough environments with its IP66 protection rating, ensuring resistance to dust and water. Its durable stainless steel construction and matte high-temperature powder-coated finish make it perfect for both indoor and outdoor use, offering long-lasting performance.

4. Reliable NEMA Outlets with IP66 Waterproof Rating
The outlets include a NEMA L5-30R 125V 30A 2P+G outlet and a NEMA L14-30R 125V/250V 30A 3P+G outlet, both with an IP66 waterproof rating. These outlets are perfect for commercial settings and outdoor applications, providing robust and safe power options.

5. Ideal for Commercial and Public Spaces
The GRES701410S-2 is designed for use in cafes, hotels, airports, and other commercial locations. Its two powerful outlets make it a reliable and flexible power source for public and commercial spaces.

Key attributes:

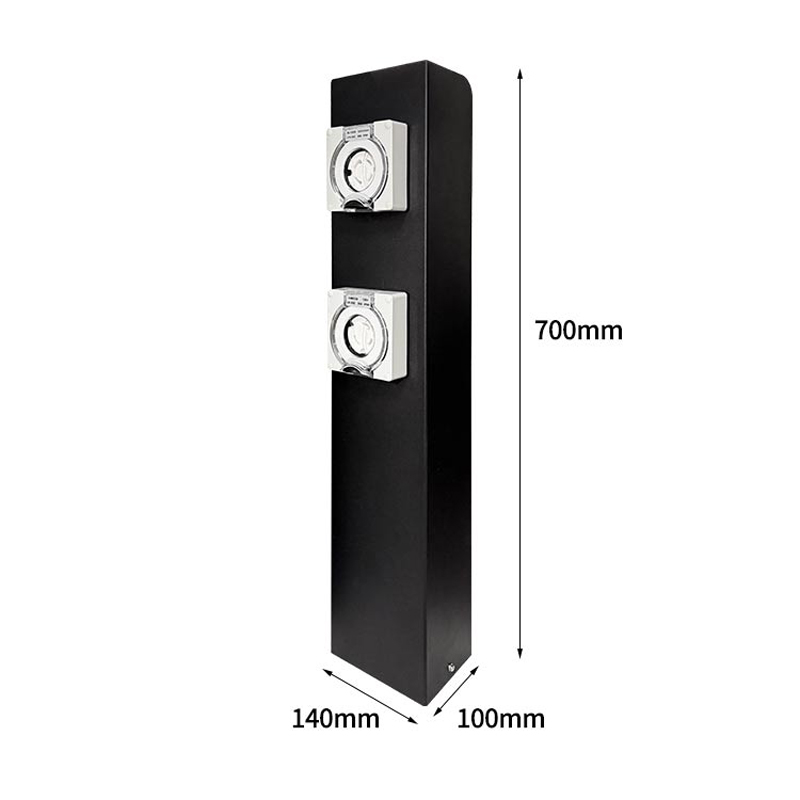

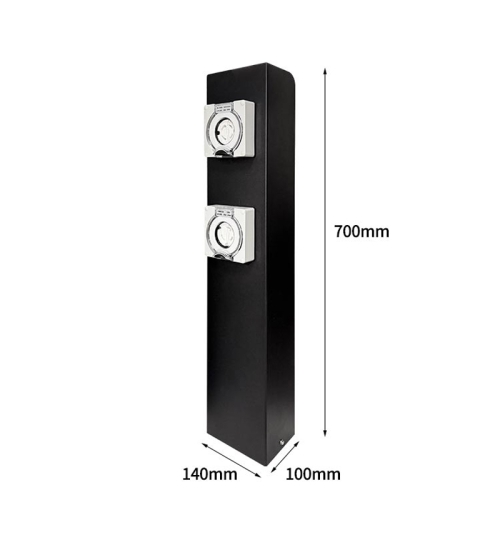

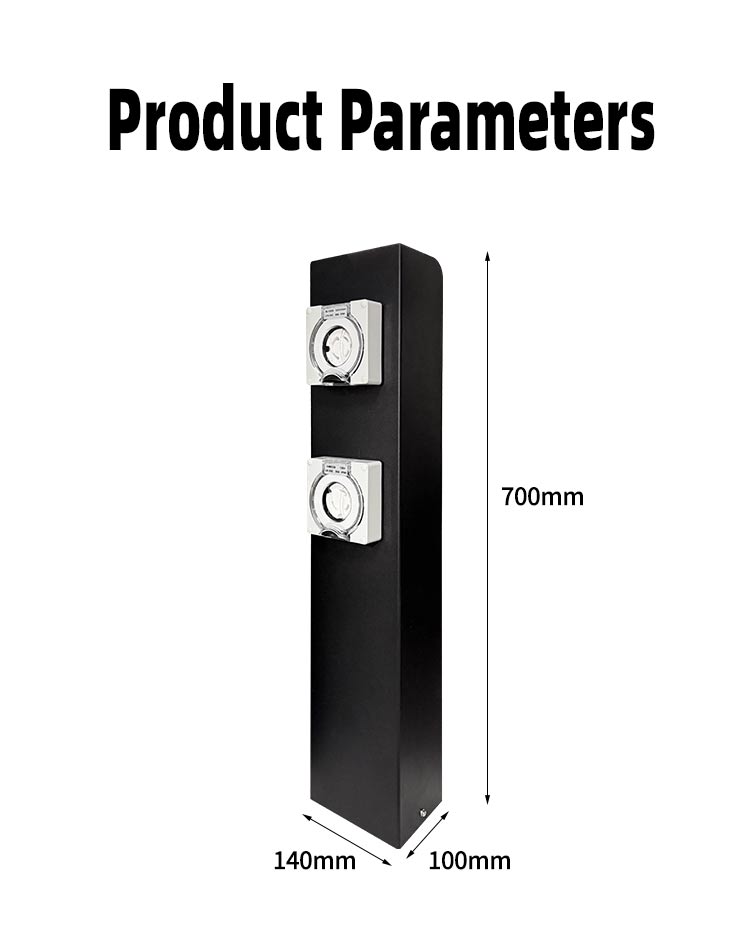

Product size	700140100mm/ 27.565.513.94inch
Rated Voltage	250V, 125V
Rated Current	10Amp, 13Amp, 15Amp, 16Amp, 20Amp, 30Amp, 50Amp
Application	Commercial Buildings, Campuses, Airports & Transit Hubs, Public Parks
Place of Origin	Zhejiang, China
Brand Name	GEEYA Intelligent
Model Number	GRES701410S-2
AC outlets quantity	2 Outlets
Material	Stainless Steel
Grounding	Standard Grounding
IP level	IP 66
Color	Black
Customized	Yes

详情页_0157

141708275

141708272

141708274

1. What outlets are included with the GRES701410S-2 power pedestal?
The GRES701410S-2 includes two outlets: one NEMA L5-30R 125V 30A 2P+G outlet and one NEMA L14-30R 125V/250V 30A 3P+G outlet, as shown in the product images. These outlets are suitable for a wide range of commercial and outdoor applications.

2. Does the GRES701410S-2 have a built-in leakage protector?
No, the GRES701410S-2 does not include a built-in leakage protector. The space for the leakage protector has been used for an additional outlet. As a result, you will need to install an external leakage protector to ensure overload and short-circuit protection.

3. Is the GRES701410S-2 suitable for outdoor use?
Yes, the GRES701410S-2 is designed for both indoor and outdoor use. It has an IP66 protection rating, making it waterproof and dustproof, which ensures reliable performance in harsh environmental conditions.

4. What is the power capacity of the GRES701410S-2?
The GRES701410S-2 features a NEMA L5-30R 125V 30A 2P+G outlet and a NEMA L14-30R 125V/250V 30A 3P+G outlet, providing a reliable power supply for various electrical devices in commercial and public spaces.

5. Can the outlets on the GRES701410S-2 be replaced with other types?
Yes, the GRES701410S-2 supports the replacement of over 80% of global outlet types, offering flexibility for different market and application needs.

6. Does the GRES701410S-2 meet safety certifications?
Yes, the outlets on the GRES701410S-2 are certified for safety and compliance with CE, UL, ROHS, and other relevant standards.

7. How do I install the GRES701410S-2?
The GRES701410S-2 is designed for easy installation. The pedestal includes a user-friendly mounting system, and the external leakage protector (if required) can be added according to your needs.

8. What materials is the GRES701410S-2 made of?
The GRES701410S-2 is constructed from high-quality stainless steel with a matte finish and a high-temperature powder-coated surface. This ensures durability, corrosion resistance, and long-lasting performance in both indoor and outdoor environments.

9. Can I use the GRES701410S-2 in commercial settings like cafes or hotels?
Yes, the GRES701410S-2 is an excellent choice for commercial environments such as cafes, hotels, airports, and other public spaces, providing secure and reliable power distribution.

10. How does the external leakage protector work?
The GRES701410S-2 requires an external leakage protector for overload protection. You can install the protector separately to ensure safety in case of electrical faults or overloads.
